Double Pipe Heat Exchanger

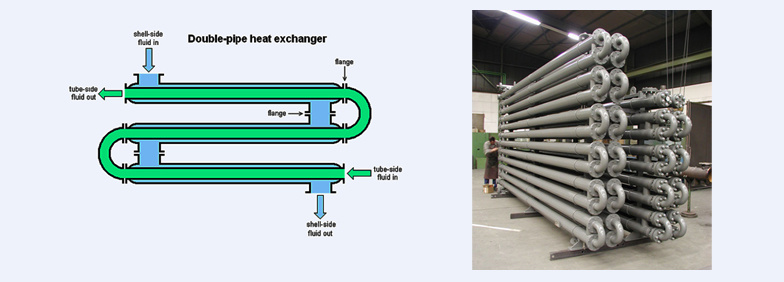

● Double pipe heat exchanger has concentric tubes composed of straight tubes of different diameters, formed by connecting U elbows.
●In this heat exchanger, one type of fluid flows inside the tube; the other type of fluid flows in the circular gap, both can flow at a high speed, yielding a high heat transfer coefficient.
●Besides, in the double pipe heat exchanger, the two fluids can be purely counter flowing, yielding a high logarithmic means impellent.
● Double pipe heat exchanger is of simple structure which can withstand high pressure and be used easily (sections of tube can be increased or decreased as needed).
