Shell-and-Plate Heat Exchanger (FP-SP)

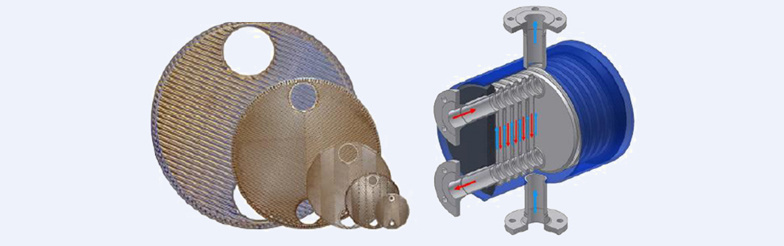

In a shell-and-plate heat exchanger, sheet bars pressed with stainless steel or other alloy materials are welded together with laser and built in a cylinder. Shell-and-plate heat exchanger integrates the advantages of temperature resistance and pressure resistance of tube-and-shell heat exchanger as well as the advantages of high efficiency and being compact of plate heat exchangers.

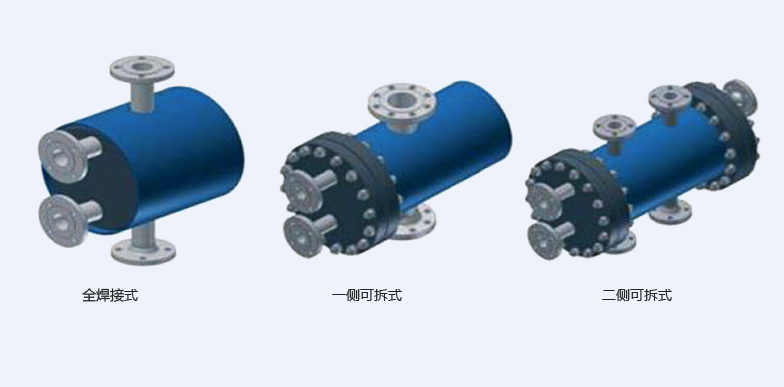

FP-SP Shell-and-Plate Heat Exchanger Has Three Structure Designs as Follows
